PassportScan External API – Documentation for Multi-Branch Integrations

PassportScan External API – Documentation for Multi-Branch Integrations

This guide explains how to enable and use the PassportScan External API, intended for selected customers needing centralized access to guest data across multiple branches, without disrupting PMS integrations.



🔐 APIKey Management


To use the API, each branch must have its own APIKey. These keys allow secure access to data from each individual location.


🔧 How to Generate APIKeys (per branch)

  1. Log into PassportScan Workspace

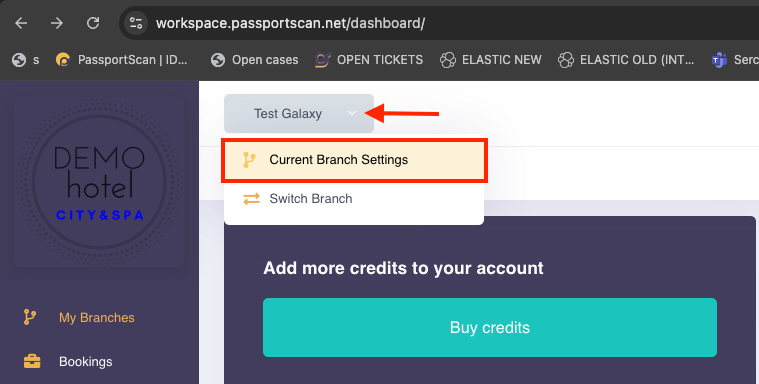

  2. Go to Branches your current branch settings


  3. In the URL, add /service at the end


    Example: https://workspace.passportscan.net/account/1/service

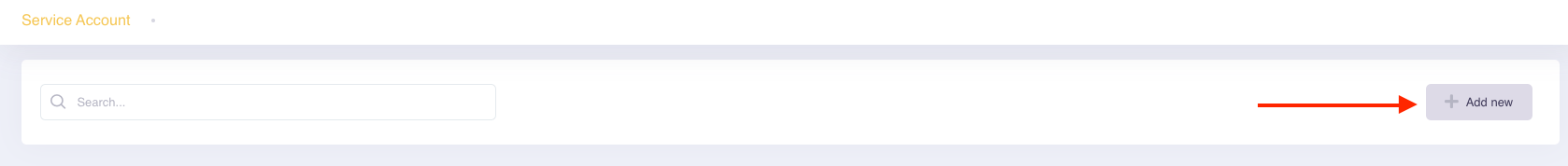

    Replace 1 with the actual Branch ID and click "Add New"


    1. Follow the steps on that page to create and manage the APIKey

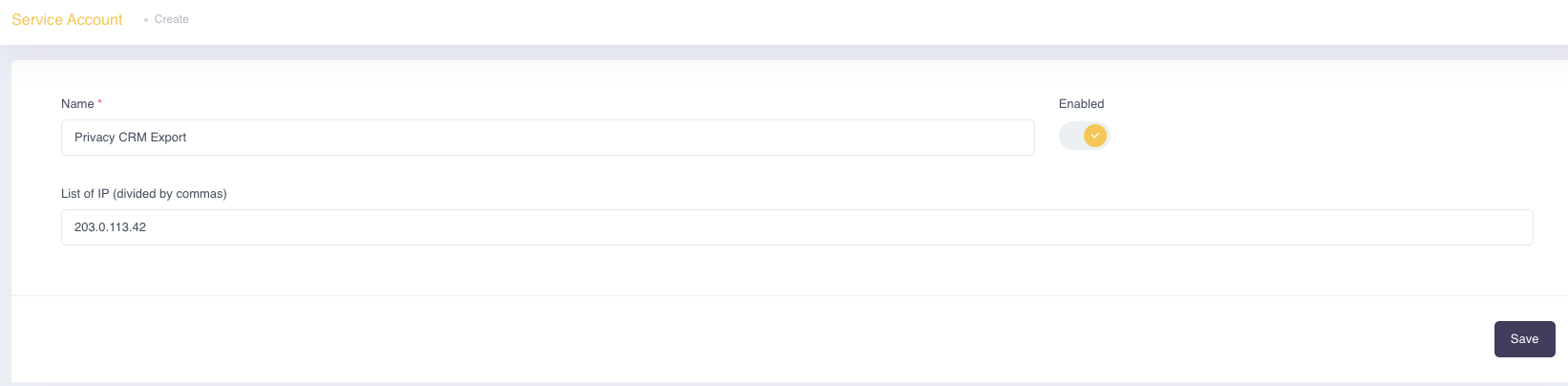

    2. Whitelist your IP address during APIKey setup.

      ⚠️ Calls from unauthorized IPs will be rejected for security reasons.


      🔐 Authentication


      To access the API, a token must be generated using the login endpoint:

      Endpoint:

      POST https://api.passportscan.net/v1/service/login


      Headers:

      X-Service: Identity
      Content-Type: application/json


      Body:

      {
        "public_key": "YOUR_API_KEY",
        "account_id": "ACCOUNT_ID_PROVIDED_DURING_SETUP"
      }


The response will include a Bearer token to be used in all subsequent calls.


📅 Get Reservations


This call retrieves reservation data, filtered by arrival_date. The all_customers flag controls whether to return all guests or only those whose data changed since your last query.


Endpoint:

GET https://api.passportscan.net/v1/reservations?arrival_date=YYYY-MM-DD&all_customers=1&pagination[page]=1&pagination[limit]=20



Header:

Authorization: Bearer <YOUR_TOKEN>

Content-Type: application/json

Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJodHRwOlwvXC9pZGVudGl0eSIsImF1ZCI6Imh0dHA6XC9cL2lkZW50aXR5IiwiaWF0IjoxNTgxMDkyMjU4LCJuYmYiOjE1ODEwOTIyNTgsImV4cCI6MTU4MzU5Nzg1OCwiMCI6IkF1dGhvcml6YXRpb24iLCJqdGkiOjAsInVzZXJfaWQiOjAsInVzZXJuYW1lIjoiU0VSVklDRV9BQ0NPVU5UIiwiY3VzdG9tZXJfaWQiOjU3LCJhY2NvdW50X2lkIjo2OSwicm9sZXMiOlsiUk9MRV9VU0VSIiwiUk9MRV9MSU5LRURfQlJBTkNIIiwiUk9MRV9TRVJWSUNFIl0sInByb2R1Y3Rfa2V5IjoiYmMwNTM5NDMtMDVjZS00YWZiLTg0MzAtYThkODIzN2M2NzFhIn0.0O7PeZFATu10Ub0dv0pXcGoNCI2VO5UNjF9dW1tgXok
Content-Type: application/json


Key parameters:


Parameter

Description

arrival_date

Reservation arrival date (required)

all_customers=1

Returns all guests, even if no changes occurred

all_customers=0

Returns only guests whose data changed since last query

pagination[page]

Pagination index

pagination[limit]

Results per page (avoid high values to prevent slow response)



Behavioral Notes:

  • If all_customers=false, the response only includes reservations or customers that have changed since the last call (e.g. scanned via app, updated via web, etc.)

  • If a reservation is retrieved, and then a document is scanned for a guest, a second call will return only the updated guest data.


    👥 Sample Response

    {
      "total": 1,
      "count": 1,
      "items": [
        {
          "id": 1858,
          "booking_code": "345",
          "arrival_date": "2020-02-07",
          "departure_date": "2020-02-17",
          "adults": 2,
          "children": 1,
          "travel_agency": "East Agency",
          "daily_rate": null,
          "group_name": "garbage group",
          "group_id": null,
          "room_number": "F57",
          "room_type": "HIGH",
          "first_name": "Anthony",
          "middle_name": "John",
          "last_name": "Soprano",
          "customer_reservations": [
            {
              "customer": {
                "last_document": {
                  "document_type": "IDC",
                  "document_number": "787667789",
                  "personal_number": null,
                  "issue_date": "1999-01-10",
                  "expiration_date": "2013-06-19",
                  "issue_place": "North Caldwell",
                  "issue_province": "Essex County",
                  "issue_country": "USA"
                },
                "last_address": {
                  "address": "Aspen Dr 14",
                  "city": "Caldwell",
                  "province": "Essex County",
                  "region": "NJ",
                  "zip": "07006",
                  "country": "USA"
                },
                "last_contact": {
                  "email": null,
                  "phone": null
                },
                "privacy_flags": {
                  "market_research": null,
                  "third_parties": null,
                  "loyalty_program": null,
                  "promotions": null,
                  "privacy": null,
                  "email": null,
                  "mail": null,
                  "phone": null,
                  "sms": null
                },
                "id": 3263,
                "first_name": "Anthony",
                "middle_name": null,
                "last_name": "Soprano",
                "birth_date": null,
                "birth_nation": null,
                "birth_city": null,
                "birth_province": null,
                "gender": "F",
                "nationality": null,
                "bad_recognized": null,
                "pms_guest_id": "343433"
              },
              "is_leader": true,
              "checkin_time": null
            },
            {
              "customer": {
                "last_document": {
                  "document_type": "EXT",
                  "document_number": null,
                  "personal_number": null,
                  "issue_date": null,
                  "expiration_date": null,
                  "issue_place": null,
                  "issue_province": null,
                  "issue_country": null
                },
                "last_address": {
                  "address": null,
                  "city": null,
                  "province": null,
                  "region": null,
                  "zip": null,
                  "country": null
                },
                "last_contact": {
                  "email": null,
                  "phone": null
                },
                "privacy_flags": {
                  "market_research": null,
                  "third_parties": null,
                  "loyalty_program": null,
                  "promotions": null,
                  "privacy": null,
                  "email": null,
                  "mail": null,
                  "phone": null,
                  "sms": null
                },
                "id": 3264,
                "first_name": "Carmella",
                "middle_name": null,
                "last_name": "Soprano",
                "birth_date": null,
                "birth_nation": null,
                "birth_city": null,
                "birth_province": null,
                "gender": "F",
                "nationality": null,
                "worker_id": 59,
                "bad_recognized": null,
                "pms_guest_id": "C349"
              },
              "is_leader": false,
              "checkin_time": null
            },
            {
              "customer": {
                "last_document": {
                  "document_type": "EXT",
                  "document_number": null,
                  "personal_number": null,
                  "issue_date": null,
                  "expiration_date": null,
                  "issue_place": null,
                  "issue_province": null,
                  "issue_country": null
                },
                "last_address": {
                  "address": null,
                  "city": null,
                  "province": null,
                  "region": null,
                  "zip": null,
                  "country": null
                },
                "last_contact": {
                  "email": null,
                  "phone": null
                },
                "privacy_flags": {
                  "market_research": null,
                  "third_parties": null,
                  "loyalty_program": null,
                  "promotions": null,
                  "privacy": null,
                  "email": null,
                  "mail": null,
                  "phone": null,
                  "sms": null
                },
                "id": 3265,
                "first_name": "Meadow",
                "middle_name": null,
                "last_name": "Soprano",
                "birth_date": null,
                "birth_nation": null,
                "birth_city": null,
                "birth_province": null,
                "gender": "F",
                "nationality": null,
                "worker_id": 59,
                "bad_recognized": null,
                "pms_guest_id": "C891"
              },
              "is_leader": false,
              "checkin_time": null
            }
          ],
          "custom_1": "custom 1",
          "custom_2": "custom 2",
          "pms_reservation_id": "AI387F"
        }
      ],
      "_links": {
        "self": "/v1/reservations?arrival_date=2020-02-07&all_customers=1&pagination[page]=1&pagination[limit]=20",
        "first": "/v1/reservations?arrival_date=2020-02-07&all_customers=1&pagination[page]=1&pagination[limit]=20",
        "last": "/v1/reservations?arrival_date=2020-02-07&all_customers=1&pagination[page]=1&pagination[limit]=20"
      }
    }


  • 🔄 Coexistence with PMS Integration


    The external PassportScan API is fully compatible with active PMS integrations.


    ✅ API usage does not interfere with data exchanges between PassportScan and your PMS.


    You can safely:

    • Query updated reservation data in real time

    • Centralize guest data from multiple locations

    • Automate workflows (e.g. CRM sync, loyalty programs)

    • Access scanned document fields data via API


    All updates via PMS, mobile app, or web will reflect in the API responses.


    🛡️ Security & Best Practices

    • Ensure all APIKeys are properly scoped per branch

    • Always whitelist IPs that will call the API

    • Use pagination and limit filters to avoid overload

    • Store and refresh Bearer tokens securely

    • Log access for traceability and compliance



  • If you need assistance enabling this feature or integrating it into your infrastructure, please contact our support@passportscan.net or your PassportScan account manager.
